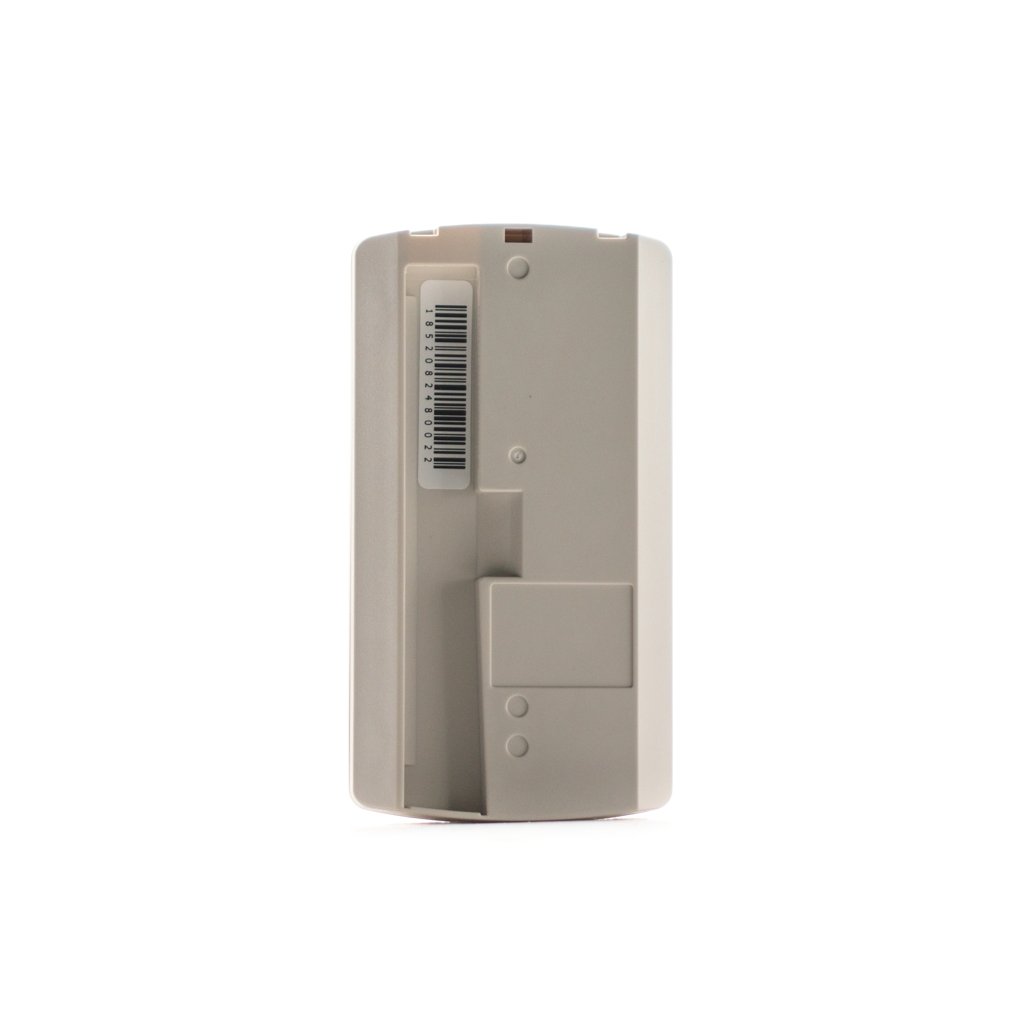

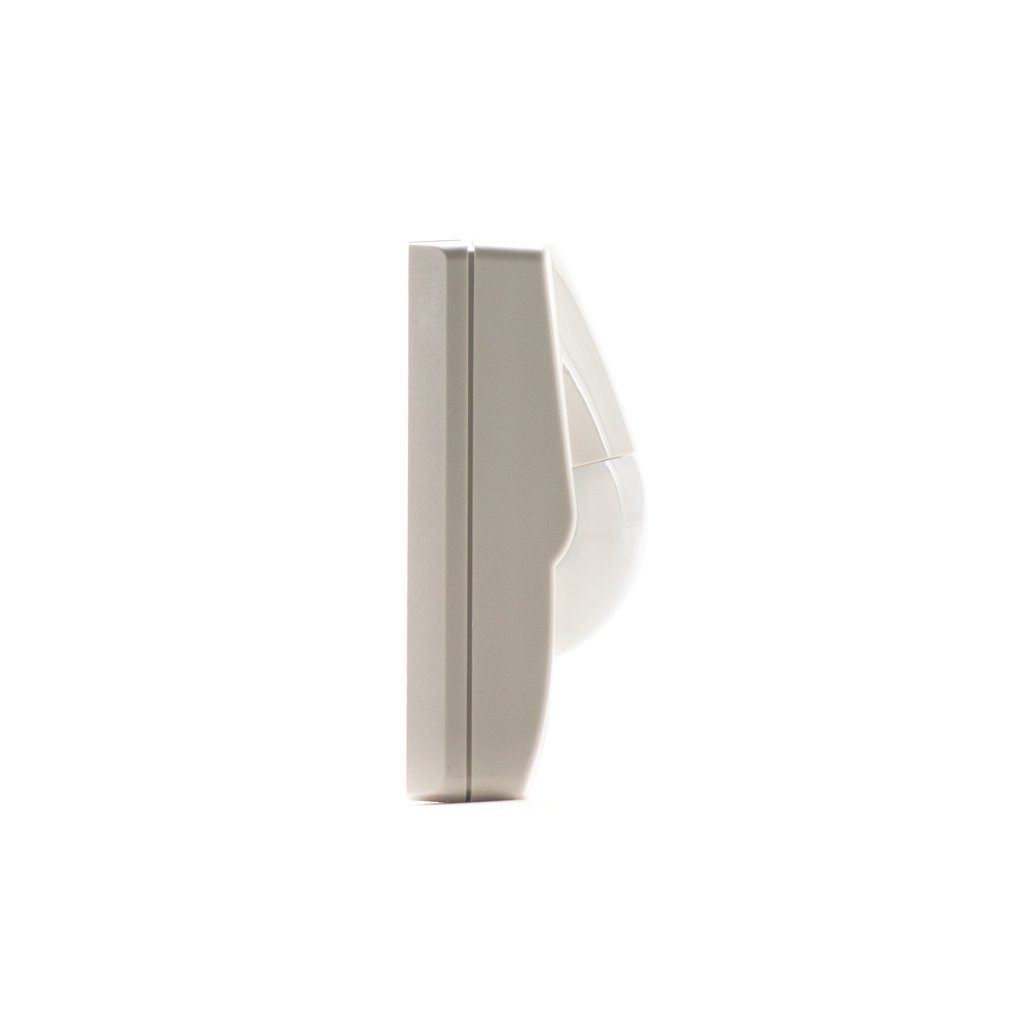

OP-MX40PI dual tech motion sensor

Category: Intrusion

The Optex MX40PI is a great choice for those of you who want a cost-effective motion detector that really takes the guess work out of the equation. This motion detector combines the best, state of the art microwave and PIR technologies to provide you with a reliable detector that won't give you a lot of false alarms like some conventional PIR only motion detectors. The MX40PI features Anti-Crosstalk technology to keep other motion detectors within the same area from interfering with each other and features Quad Zone logic which can tell the difference between humans and other sources of infrared. This unit is also pet friendly which means that if you have a pet or pets with a combined weight of under 100 lbs.; you don't have to worry about them setting of the motion detector.

Description

The Optex MX40PI is a great choice for those of you who want a cost-effective motion detector that really takes the guess work out of the equation. This motion detector combines the best, state of the art microwave and PIR technologies to provide you with a reliable detector that won't give you a lot of false alarms like some conventional PIR only motion detectors. The MX40PI features Anti-Crosstalk technology to keep other motion detectors within the same area from interfering with each other and features Quad Zone logic which can tell the difference between humans and other sources of infrared. This unit is also pet friendly which means that if you have a pet or pets with a combined weight of under 100 lbs.; you don't have to worry about them setting of the motion detector.

Specification

Model MX-40PI
Detection method Passive Infared and microwave
Coverage 40ft x 40ft (12m x 12m) 85 wide
Detection Zones 78 zones (PIR)
Mounting height 5 - 8ft. (1.5 - 2.4m)
Sensitivity 3.6 F (2 C) at 2ft./sec. (0.6m/sec)
Detectable Speed 1 - 5ft./sec. (0.3 - 1.5m/sec.)
LED Alarm Indicator Switchable ON/OFF
Alarm Period Approx. 2.5 sec.
Alarm output N.C., 28V DC=0.2A max.
Pulse Count Approx. 1 min.
Power Input 9.5 - 16V DC=
Current Draw 18mA (max.) at 12V DC=
Weight 3.9oz. (110g)
Operating Temperature 14F - 131F (-10C - +55C)
Environmental Humidity 95% max.
Microwave Frequency 2.45GHz (FCC, IC, ETS300-440 approval)
RF Interference No Alarm 20V/m
