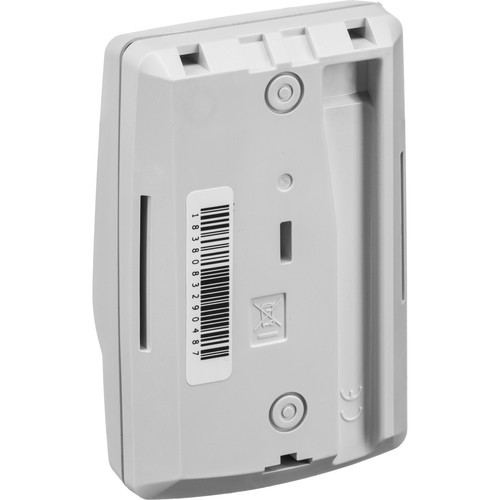

OP-RX40PI Pet immunity PIR sensor

Category: Intrusion

Quad Zone Logic provides pet immunity Sensor detects IR energy changes in multiple zones for accurate detection Temperature changes from small pets don't trigger alarm

Description

Quad Zone Logic provides pet immunity Sensor detects IR energy changes in multiple zones for accurate detection Temperature changes from small pets don't trigger alarm

Specification

Manufacturer ?Smarthome Technologies
Part Number ?RX-40PI
Weight ?3.2 ounces
Dimensions ?2 x 4 x 2 inches
Detection Method Infrared
Coverage Wide: 40 x 40' / 12 x 12 m, 85° Wide
Detection 78 Detection Zones
Mounting Height 5 to 8' / 1.5 to 2.4 m
Sensitivity 3.6°F / 2°C at 2' / 0.6 m per Second
Detection Speed 1 to 5' / 0.3 to 1.5 m per Second
Indicator Light LED Alarm Indicator: Switchable (On/Off)
Alarm Period Approximately 2.5 Seconds
Alarm Output NC, 28 VDC, 0.2 A Maximum
Pulse Count Approximately 20 Seconds, 2 or 4
Warm-Up Period Approximately 30 Seconds
Power Input 9.5 to 16 VDC
Current Draw Normal: 8 mA at 12 VDC Maximum: 11 mA at 12 VDC
Operating Temperature -4 to 122°F / -20 to 50°C
Humidity Environmental Humidity: 95%
RF Interference No Alarm, 20 V/m
Dimensions 2.44 x 3.82 x 1.73" / 62 x 97 x 44 mm
Weight 4.2 x 2.7 x 1.9"
